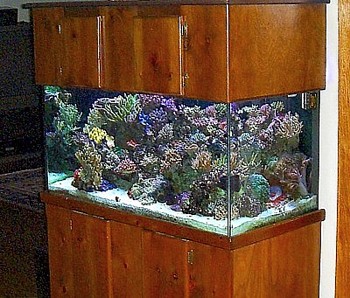

                                           DISPLAY

Make & Model

Lee Mar "Euro" style tank

Dimensions

48 x 24 x 24 inch  (122 x 61 x 61 cm)

Volume

120 gallon (450 liter)

Features
  • 1/2" glass

  • bevel-cut edges

  • top interior parameter 4" bracing, no center brace

  • trimless

  • black silicon joints, black painted rear glass

  • rear/center black acrylic overflow compartment with 1" bulkhead

Stand

30" height, pine construction, dual front doors

Canopy

15" height, pine construction, dual front doors, hinged top lid

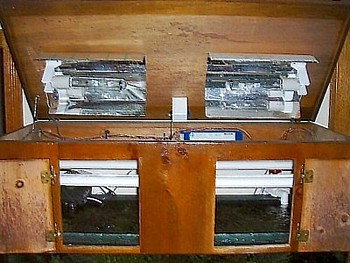

                               LIGHTING DEVICES

Primary Lighting

 2 x 400 watt German Ushio 10,000K metal halide bulbs

 2 x 400 watt Magnetek M59 Cap/Core style ballasts

 2 x Spiderlight reflectors

Supplemental Lighting

 4 x 110 watt, 48" URI actinic VHO fluorescent bulbs

 Icecap 660

Cooling  2 x Orion "Whisper" 4" Ball Bearing Fans
Auxiliary Lighting  25 watt incandescent blue moon light bulb

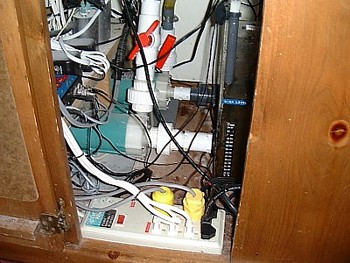

                           CIRCULATION DEVICES



  Iwaki MD30RLT (to chiller to Sea Swirl to display) Sea Swirl 1" oscillation device
  Iwaki MD30RLXT (to Sea Swirl to display) Sea Swirl 3/4" oscillation device



                               FILTRATION DEVICE

 Euro-Reef CS6-2 Protein Skimmer

                               CALCIUM DEVICES



Geo Dual Chamber Calcium Reactor 10 gallon reservoir by Lifereef EcoTech Marine Kalkreactor
5 lb CO2 bottle w/ regulator and solenoid Contains R/O water Reactor fed reservoir water via Litermeter
CaribSea A.R.M and SuperKalk Gold media Reservoir feeds Litermeter Stirrer timing controlled by Aquacontroller



                             TEMPERATURE DEVICES

        COOLING:  Aqualogic 1/3 horsepower "Delta" in-line chiller (plumbed to outdoors);  water supplied by Iwaki MD30RLT

        HEATING:  350W Pro-Heat Titanium IC Heater



                               AUTOMATION DEVICES

        Neptune Aquacontroller II controlling:



        SpectraPure LiterMeter dosing device feeds Ecotech Reactor to top off evaporated water.



                          BIOLOGICAL COMPONENTS



                  FOOD, ADDITIVES & MAINTENANCE

  1. Live Artemia sp. "brine shrimp" (Selcon enriched)

  2. Ocean Nutrition Reef Formula frozen food (Selcon enriched)

  3. Harvested algae from overflow compartment.

  1. B-ionic

  2. DT Phytoplankton and Liquidlife Bioplankton on alternating cycle.



Almost every equipment purchased from:
